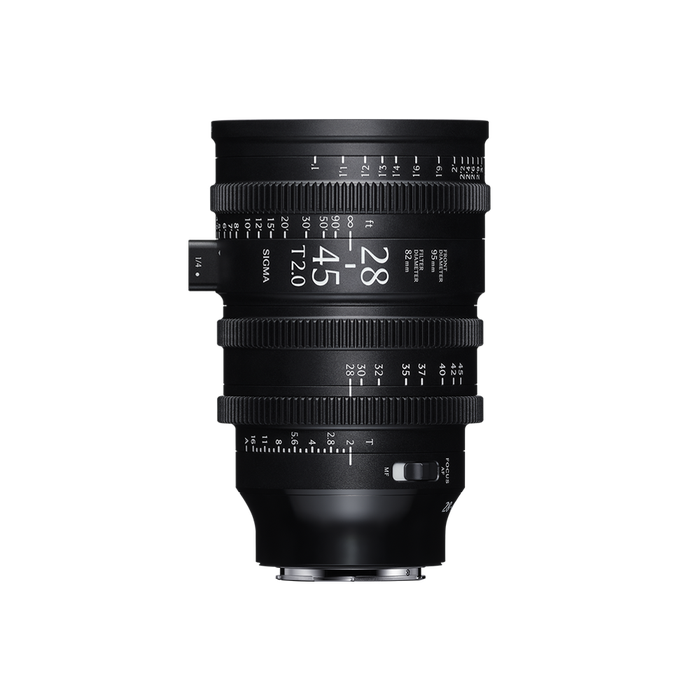

28-45MM T2 FF
- Advanced optical design and outstanding rendering performance
- Professional-grade mechanical design and operability
- Standardized Essentials: Gear position, Color Correction, Filter Size & Front Diameter
- AF system with excellent tracking capability and near-silent operation
As the first AF-compatible Cine Lens series from Sigma,
the Sigma AF Cine Line brings innovation to the film production scene.
As the first AF-compatible Cine Lens series from Sigma,
the Sigma AF Cine Line brings innovation to the film production scene.
Building on the optical system of Sigma’s Art lenses, the AF Cine Line offers exceptional rendering performance, along with high-precision autofocus with excellent tracking capability, combined with the ergonomics required for professional cinema production.
This allows it to handle multiple shooting styles and on-set environments that were previously challenging with traditional still lenses or cine lenses.
The AF Cine Line, which embodies Sigma’s latest technology, expands the possibilities of visual expression and brings new possibilities to future film production.
| Cine Lens Series | AF Cine Line | |
|---|---|---|
| Focal lenght | 28-45 mm | |
| Aperture (T) | T2 - T16 | |
| Number of diaphragm blades | 11 | |
| Minimum Focusing Distance | 0.3 m / 1'0 (*1) | |
| Maximum magnification ratio | 1:4 | |
| Front diameter | 95 mm | |
| Filter diameter | 82 mm | |
| LengthPagebuild | L-mount 151.3 mm (*2) |
|
| WeightPagebuild | L-mount 1 200g |
|
| Angle of View Full Frame | 65.5 - 43.6° (*3) | |
| Angle of View S35 | 47.9 - 30.9° (*4) | |
| Focus Rotation | 200° | |
| Iris Rotation | 57° | |
| Lens Support Foot | SF-91 | |
| EAN | L-mount 085126942984 |
|
| Specifications Info | * 1 Close focus distance is measured from the image plane Download Specification: |
|
Advanced optical design and outstanding rendering performanceLenses compatible for full-frame
The optical systems of the Sigma 28-45mm T2 FF incorporate the designs of the highly acclaimed still lenses: the Sigma 28-45mm F1.8 DG DN | Art. Combining the experience gained through years of lens design, the latest development technology, and the advanced manufacturing techniques of Sigma's sole production base, the Aizu factory, these lenses deliver exceptional resolution and beautiful bokeh regardless of focal length or focus position, along with a sharp, clean look with minimal flare and ghosting.
Professional-grade mechanical design and operability
Inheriting the rendering performance and reliability of Sigma’s Art lenses, the AF Cine Line integrates cinema-style mechanics and operability, optimized for professional cinema production. It features a limited-rotation focus ring, industry-standard 0.8M pitch gears, and a clickless aperture ring to meet industry demands.
AF system with excellent tracking capability and near-silent operation
Equipped with a linear motor HLA (High-response Linear Actuator), the Sigma AF Cine Line captures intense movements in action scenes, rapid focus shifts in gimbal or handheld shooting, and unpredictable moments in documentaries without missing a split second, providing reliable support for filmmakers in various shooting situations.
